Current Location: Home > Products> Full Height Double Turnstile JDFHT-5
Full Height Double Turnstile JDFHT-5 Full Height Double Turnstile JDFHT-5 Full Height Double Turnstile JDFHT-5 Full Height Double Turnstile JDFHT-5

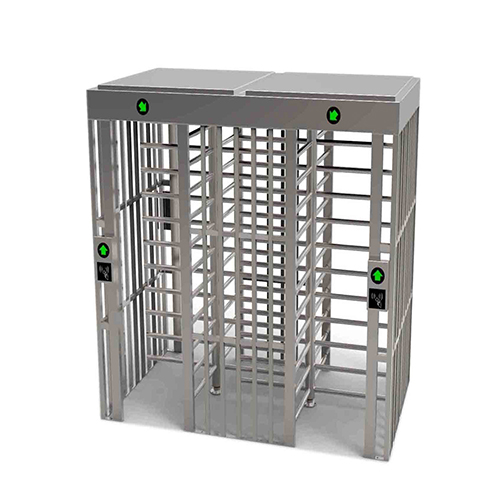

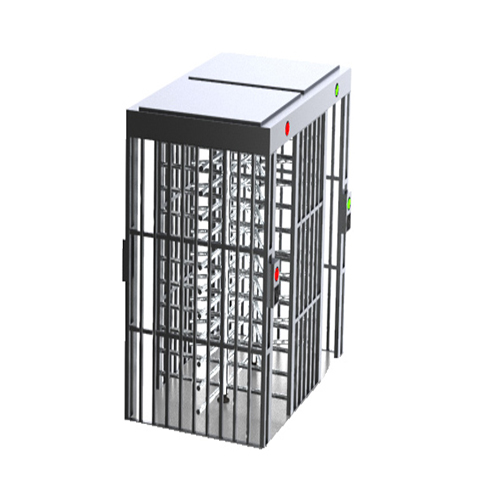

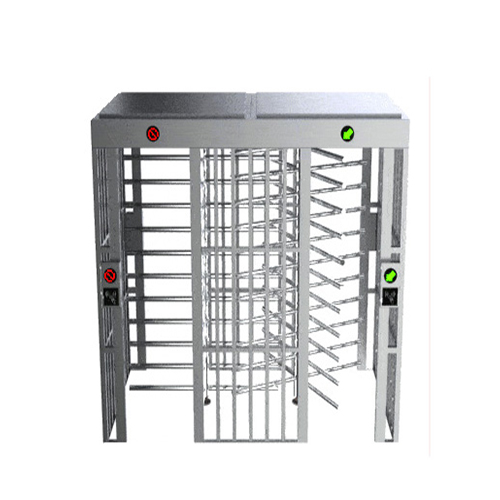

Product Name:Full Height Double Turnstile JDFHT-5

  • Product Details:

    Full height double turnstile JDFHT-5 is a sturdy security turnstile that offers the maximum level of security for a variety of applications where perimeter control is necessary. The unique motorized drive provides great reliability, lower maintenance, and fast throughput. The tall cage prevents the user from climbing over or crawling under to gain access without the supervision of the security guard. Additionally, its functionality in a harsh environment is ensured by the mechanical design and robust stainless steel construction. Finally, such an automatic turnstile makes it possible to manage two regulated passage zones in a small area.

  • E-mail:
                       Details

Full heigh double turnstile flexibly integrates any type of access control system



Full Height Double Turnstile Features

1. Indoor/outdoor application
2. Direction indicator function, showing passing or prohibiting for the people
3. Electrical controls for both directions
4. Heavy-duty high precision mechanism
5. Whisper quiet, low-noise operation
6. Easily integrates with almost any access control system
7. Electrically controlled and manual operations are available
9. High-security equipment with minimum observation and provide anti-tailgating
10. Failure self-detection and alarm indication function

Applications

Subways
Trade centers
Private offices
Stadiums
Military Base
Prisons

Parameters

 Housing Material   #304 stainless sheet
 Dimension  2400 x 1350 x 2300mm
 Power Supply  AC110V~240V, 50/60hZ
 Channel Width  600mm
 IP Rate  IP45
 Pass Speed  30 ~35 persons per minute
 Input Interface  Dry contact signal or +12V level signal or DC12V pulse signal
 Rotating Direction  Bi-directional
 Communication interface  RS485
 Gate opens when power failure  Yes
 Open Time  0.2 second
 Life Cycle  5 million times
 Working Temperature  -30°C~+70°C, Relative Humidity: ≤90%, no condensation
 Working Environments  Indoor, outdoor (with shelter)



The Dimensions

The Dimensions of Full Height Double Turnstile

The Design

Double Full Height Turnstile

The Dimensions

The Dimensions of Full Height Double Turnstile

The System Diagram

The System Diagram of Full Height Double Turnstile

Project Cases

Full Height Double Turnstiles

Please leave a message if you are interested in this model


  • *
  • *
  • *
